KD Titanium GR5 Polycentric Disarticulation Knee Joint

Basic Information
Place of Origin: CHINA
Brand Name: HK PROSTHETIC&ORTHOTIC
Certification: CE And ISO13485
Model Number: CHG-06S / CHG-06T
Minimum Order Quantity: 5 Pcs
Price: USD 220~60 Per Pcs
Packaging Details: Shaped EPE With Cartons
Delivery Time: Within 7 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 1000000 Pcs Per Year
Material: Stainless Steel 630 / Titanium GR5 Connections: AK
Weight: 941g Weight Limit: 100Kg / 220LBS(SS) 125Kg/ 275Lbs(TI)
Activity Level: K1,K2 Maximum Knee Flexion Angle: 110°
Knee Center To Proximal Connection: 18mm Proximal Connection: Lamination Anchor
Distal Connection: Pyramid Adaptor System Height: 99mm
High Light:

Titanium Polycentric Disarticulation Knee Joint

,

220LBS Polycentric Disarticulation Knee Joint

,

ISO 13485 single axis knee

Prosthetic Knee Joint-Polycentric Four Bar Linkage Prosthetic Knee Joint For KD Stainless Steel 630 Titanium GR5

• For knee disarticulation • Polycentric• With mechanical extension assist
• Suitable for max. S.S100 kg (220lbs) / Ti 125Kg(275Lbs) body weight
Recommendation:
• For knee disarticulation amputees
• With moderate functional levels
• Normal stability
• Not suitable for insecure amputees and those with higher functional levels



Description:
The upper joint section with adjustment core and the lower joint section with pyramid are connected to each
other with anterior and posterior linkage bars. The lamination anchor is the detachable connection to the
socket. The stance phase stability is achieved through polycentric kinematics. Extension assist and axial
friction are both adjustable.



Technical Data:
• Knee flexion range: approx. 110° • Height (knee center - upper edge): 18 mm



Product Number Material Standard Part Weight Weight Limit
CHG—06S Casting S.Steel 941g 220lbs
CHG—06T Titanium 517g 275lbs

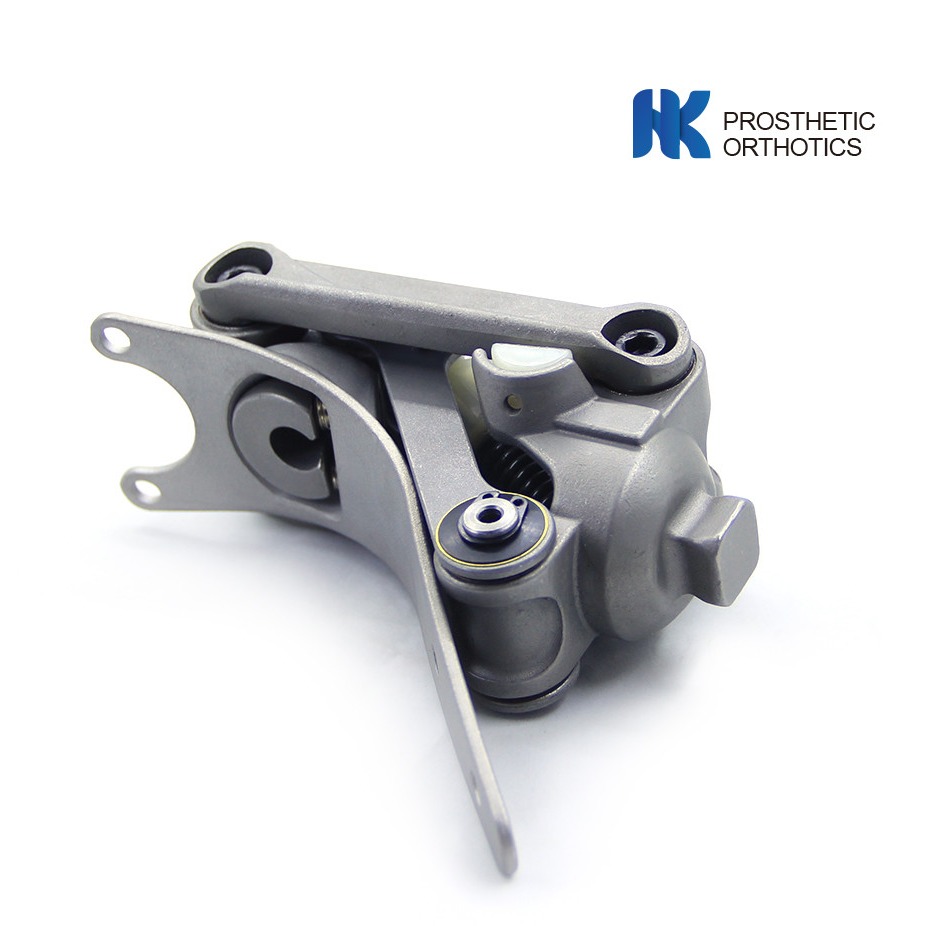

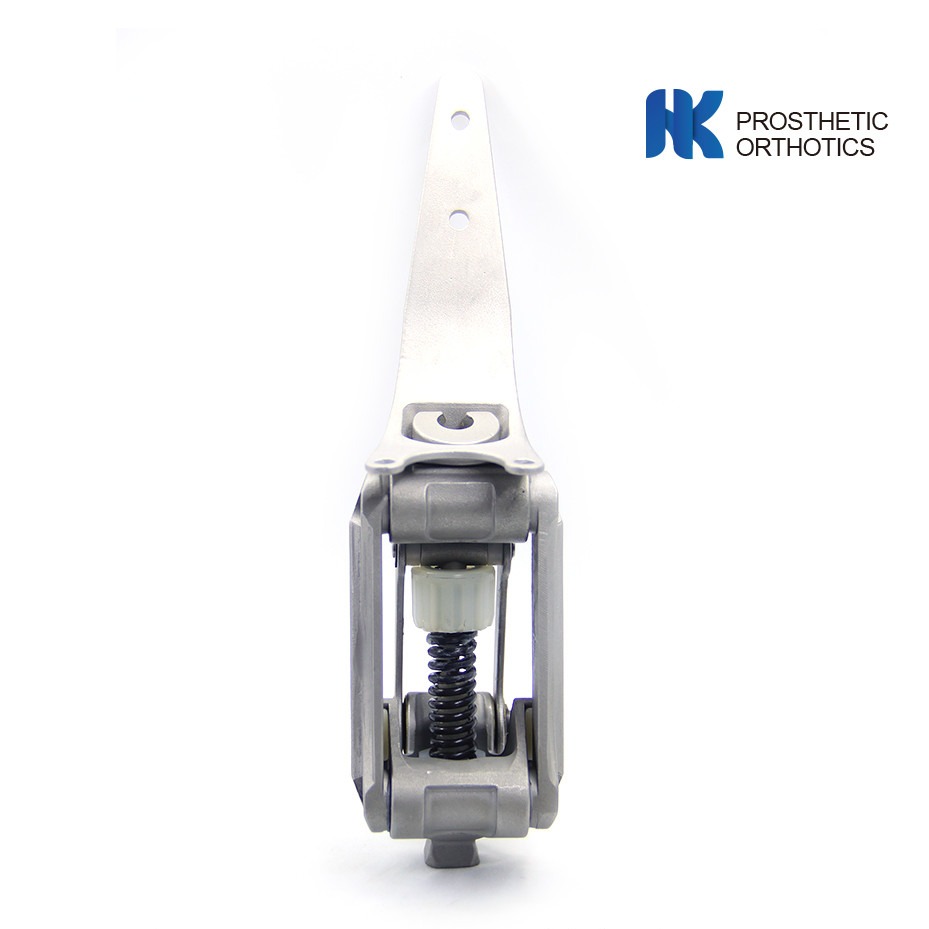

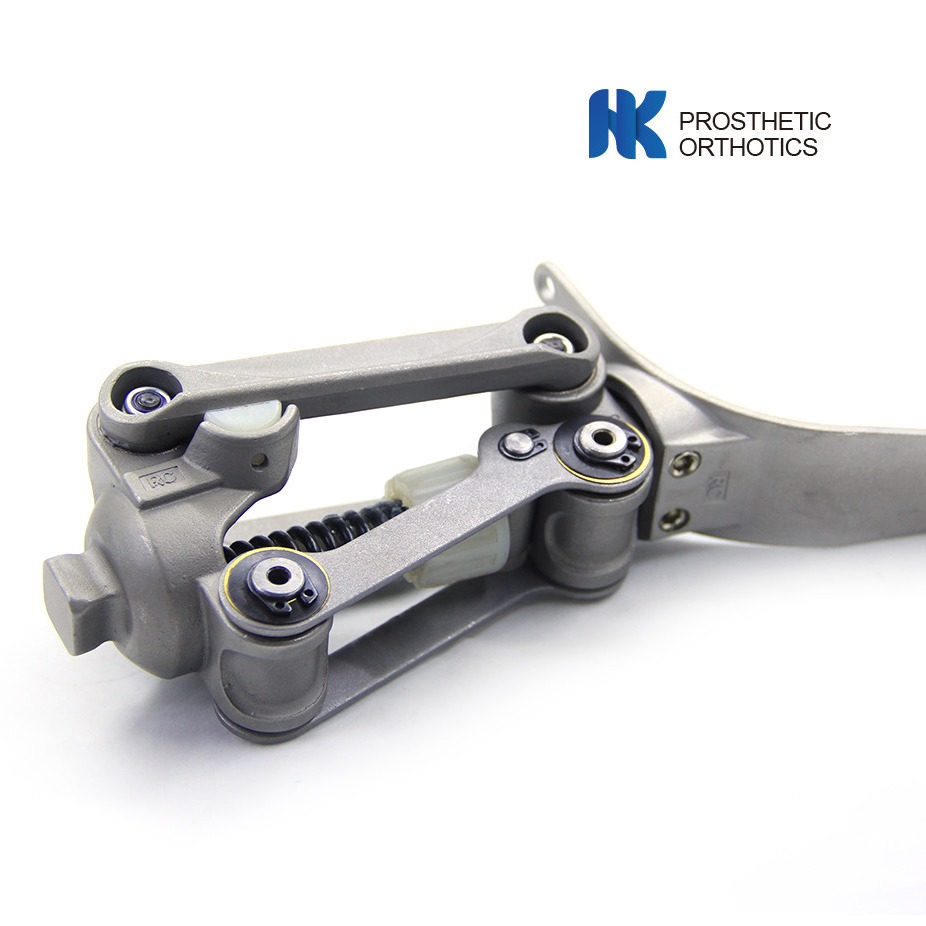

KD Titanium GR5 Polycentric Disarticulation Knee Joint 0KD Titanium GR5 Polycentric Disarticulation Knee Joint 1

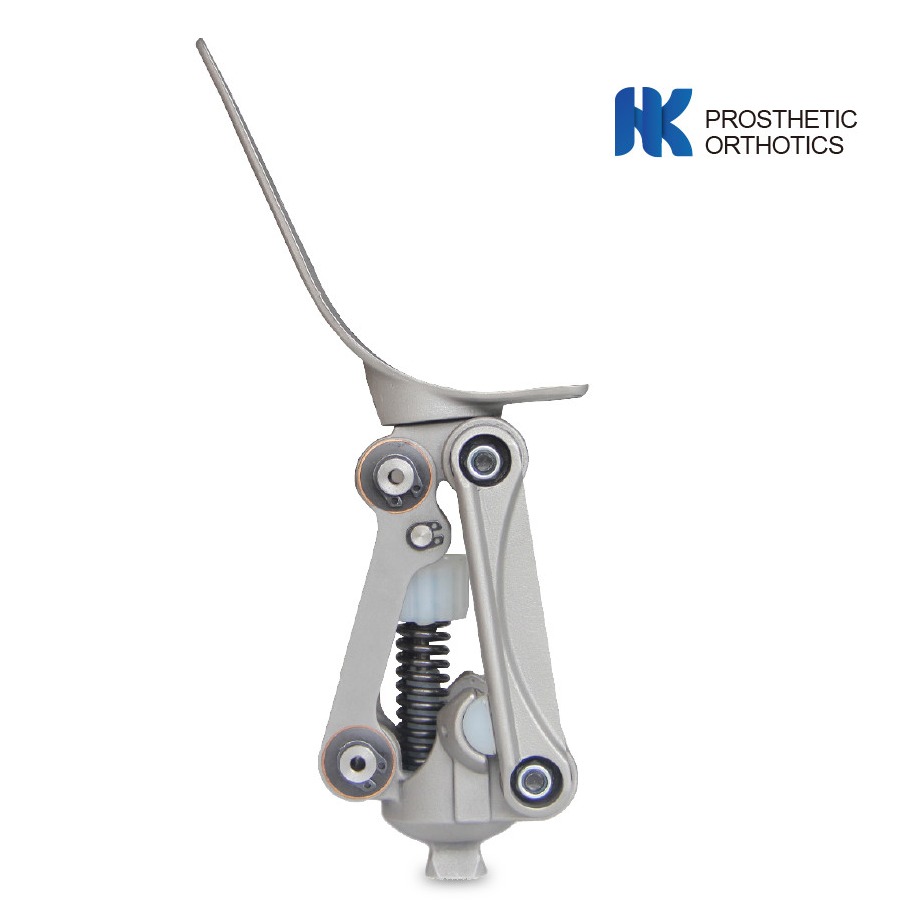

KD Titanium GR5 Polycentric Disarticulation Knee Joint 2

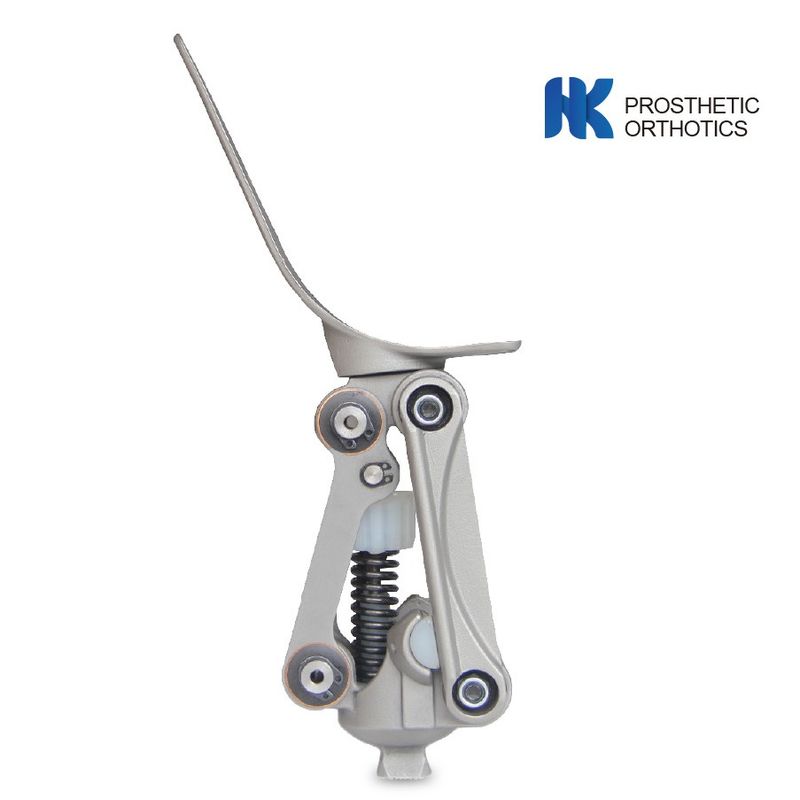

KD Titanium GR5 Polycentric Disarticulation Knee Joint 3KD Titanium GR5 Polycentric Disarticulation Knee Joint 4KD Titanium GR5 Polycentric Disarticulation Knee Joint 5
