Lower Limb Prosthetic Components-Double Head Adaptor

Basic Information
Place of Origin: CHINA
Certification: CE And ISO13485
Model Number: CHL_16S / CHL-16T / CHL-16AL
Minimum Order Quantity: 5 Pcs
Price: USD 30~7 Per Pcs
Packaging Details: Shaped EPE With Cartons
Delivery Time: Within 7 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 1000000 Pcs Per Year
Material: Stainless Steel 17-4 / Titanium GR5 / Aluminium 7075 Max Load: 100Kg 220LBS (SS&AL) / 125Kg 275LBS (Ti)
Proximal Connection: Pyramid Adaptor Sample: Available
OEM: Available Warranty: Two Years
Logo Print: Available Part Weight: 90g~210g

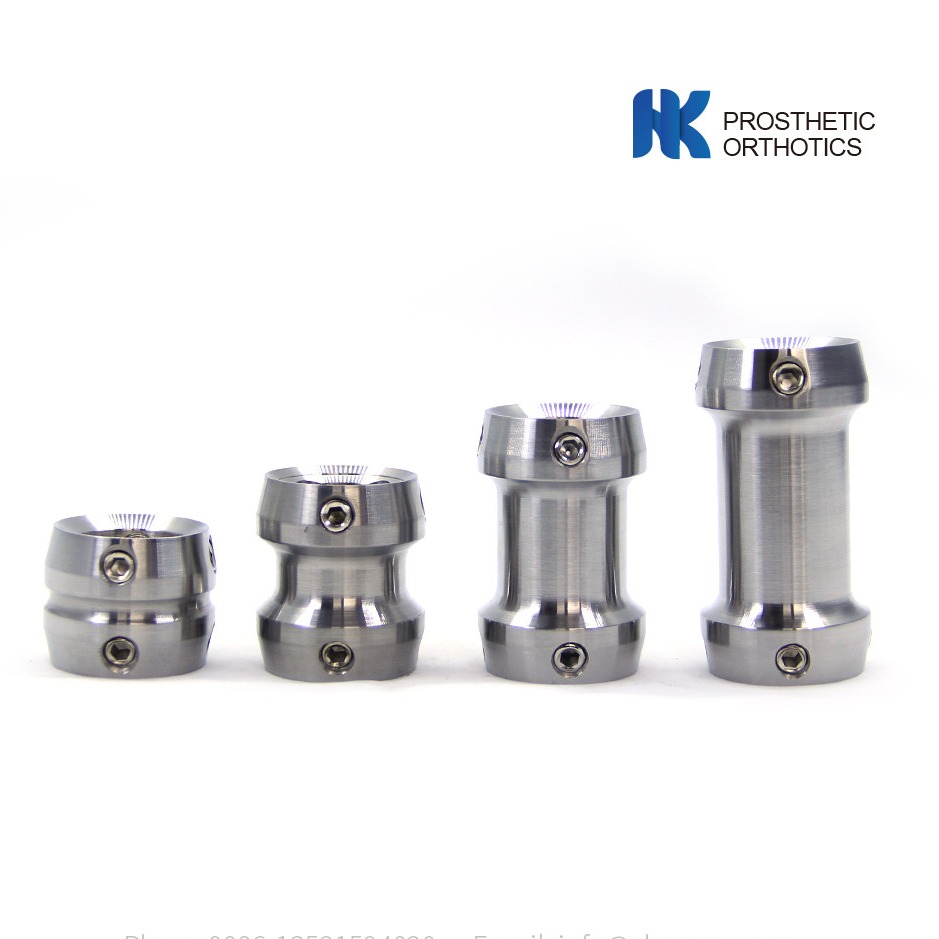

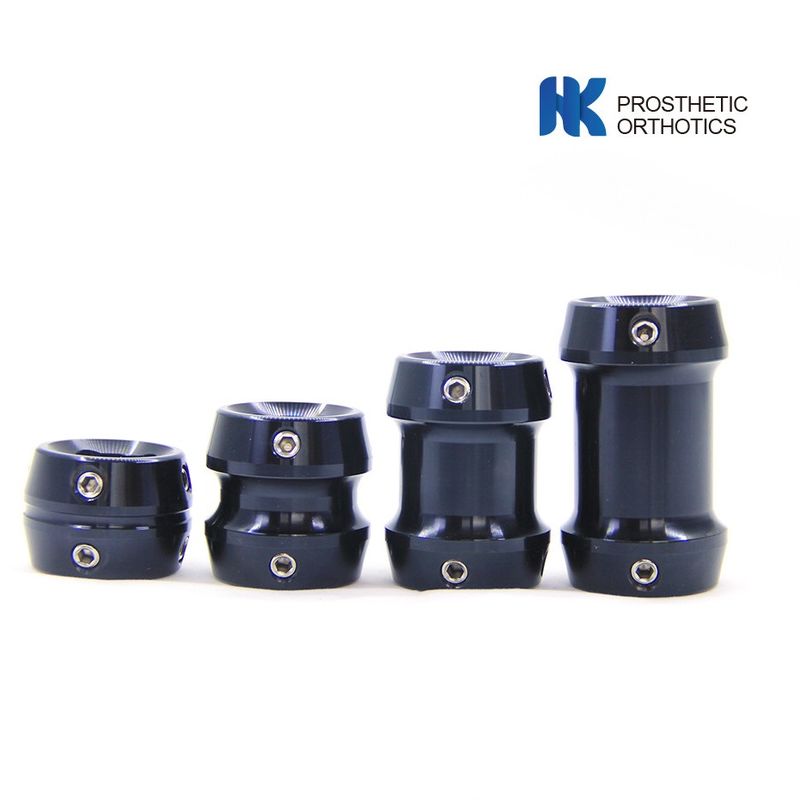

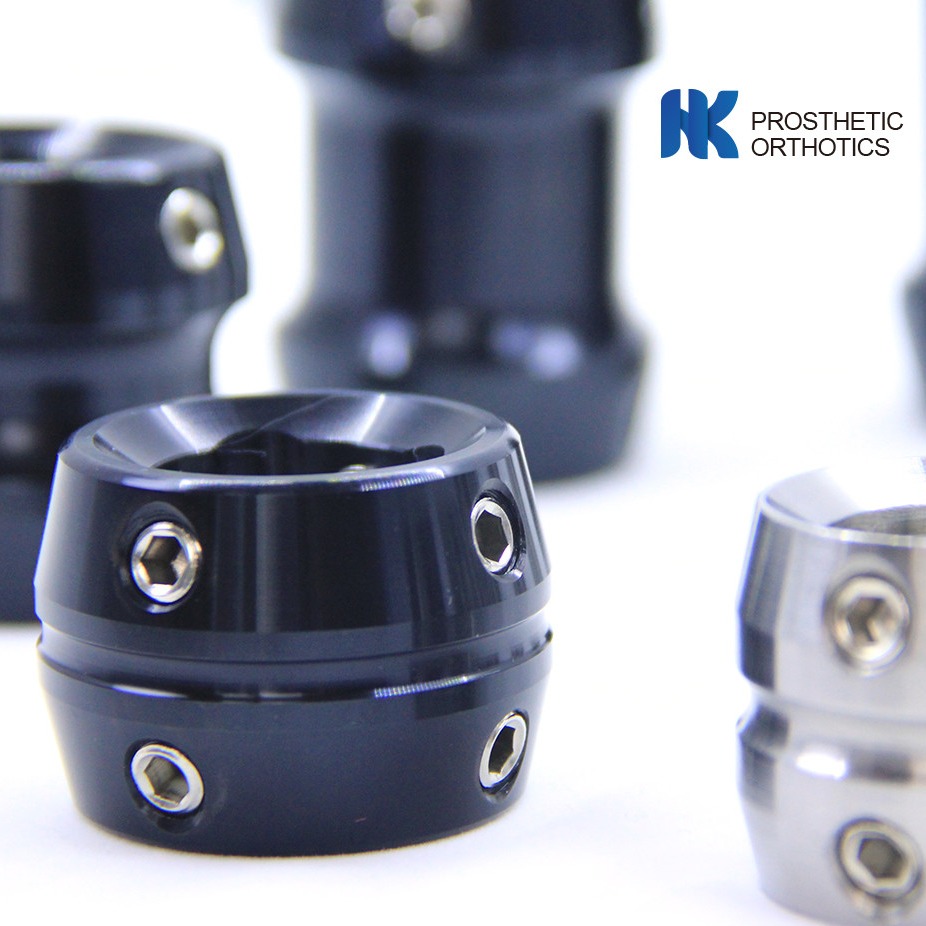

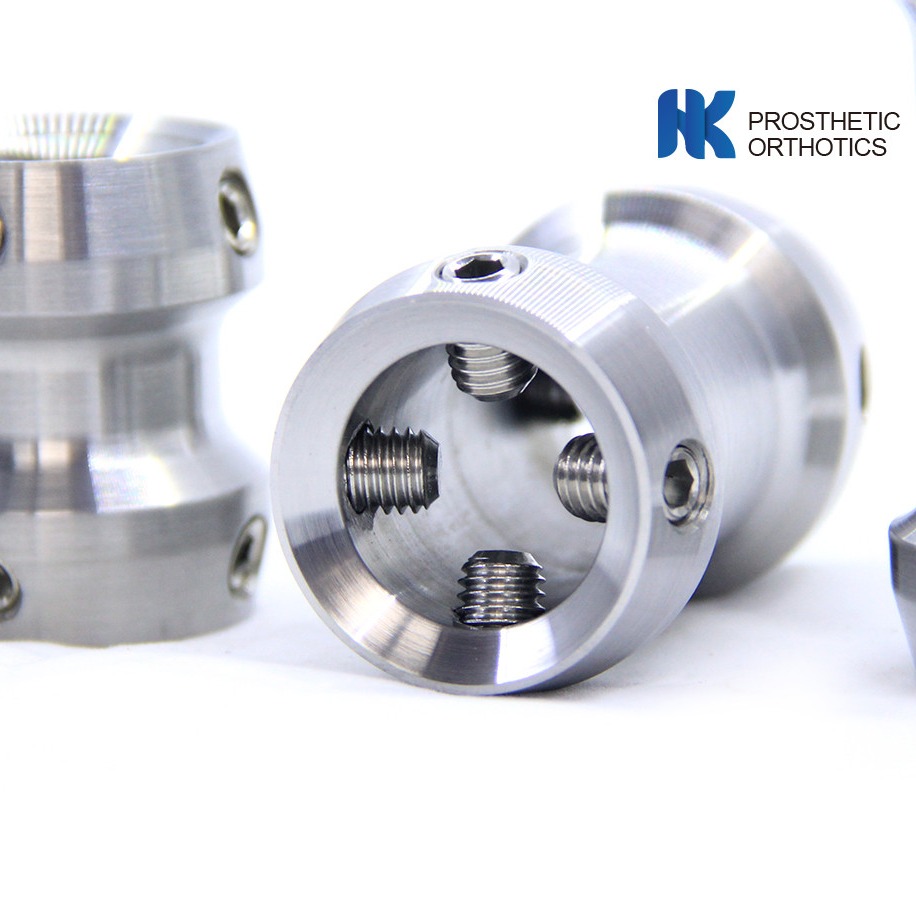

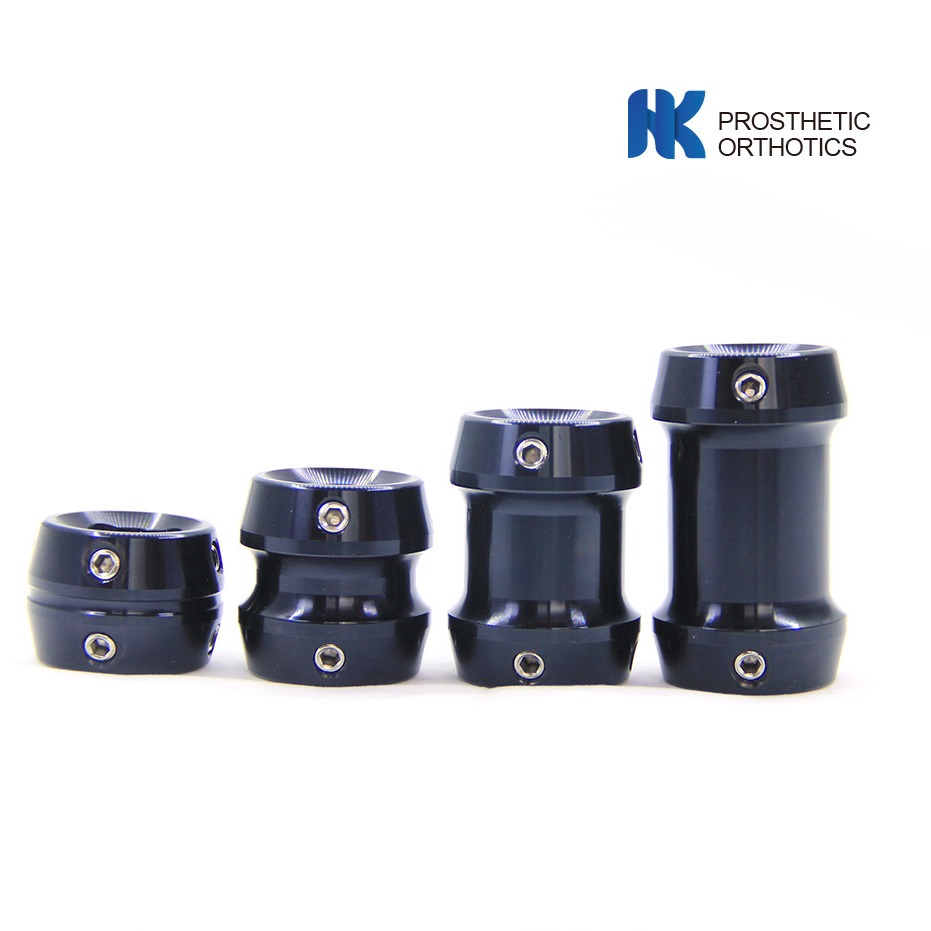

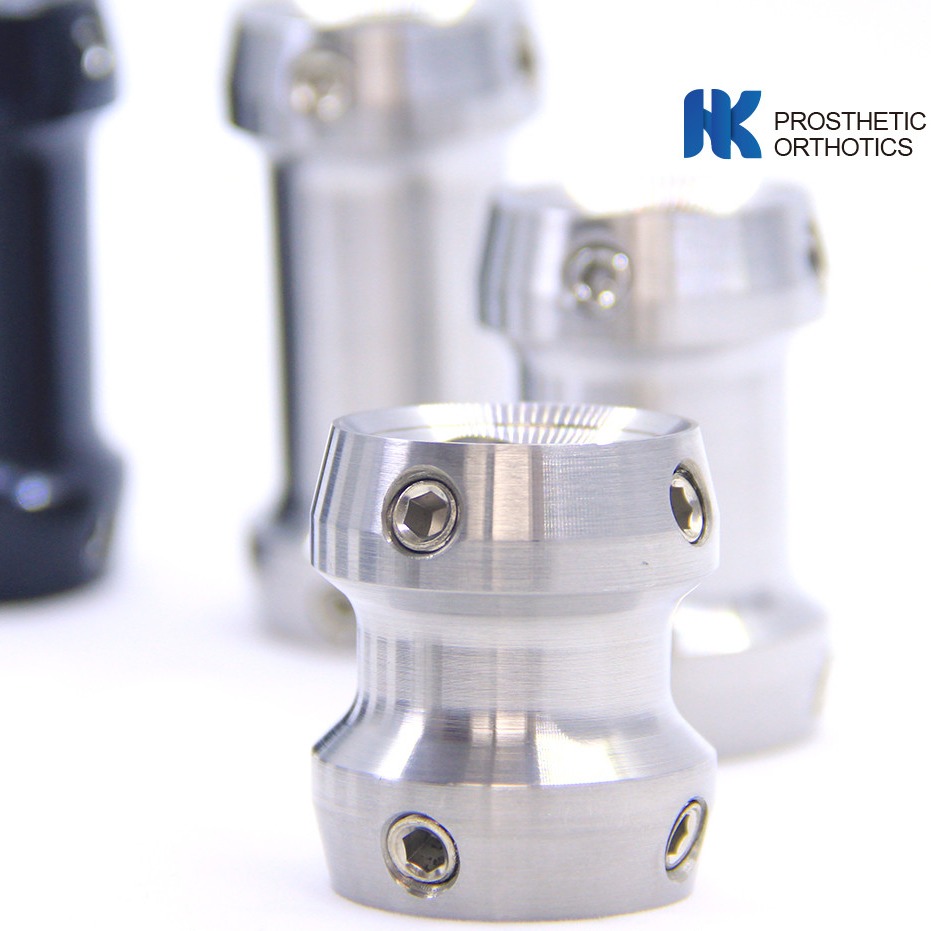

Lower Limb Prosthetic Components-Double Head Adaptor

Double Head adaptors are used to connect Two pyramid adaptor. The pyramid receivers make it possible to make distal and proximal angle adjustments in the frontal and sagittal planes.

There are Four Length 32mm Or 45mm, Or 60mm, Or 75mm for fixing with different connections requirements.

Product Number Material Standard Part Weight Weight Limit
CHL—16S S.Steel 32mm45mm60mm75mm 149g169g192g210g 220lbs
CHL—16T Titanium 32mm45mm60mm75mm 90g100g110g120g 275lbs
CHL—16AL Aluminum alloy 32mm45mm60mm75mm 100g115g128g142g 220lbs

Lower Limb Prosthetic Components-Double Head Adaptor 0

Lower Limb Prosthetic Components-Double Head Adaptor 1
Lower Limb Prosthetic Components-Double Head Adaptor 2
Lower Limb Prosthetic Components-Double Head Adaptor 3Lower Limb Prosthetic Components-Double Head Adaptor 4Lower Limb Prosthetic Components-Double Head Adaptor 5

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer, providing OEM & ODM service.

Q: How many years since your company start this business?

A: We began manufacturing prosthetics and orthotics parts since the year 2002.

Q: Did your factory Register for export and import?

A: Yes. We applied full range of documents for exportation and importation.

Q: Did your factory and products approved by any testing or certification?

A: yes. We applied CE and ISO13485 medical certification.

Q: May I apply to be one distributor or sole agent in our country to sell your products?

A: yes. This issue can be have a discussion.

Q: May I apply some free samples for testing before purchasing the full range of production?

A: Yes. sample order is acceptable. Also free sample order totally amount can’t be over USD 50.

Q: How to deal for sample order and regular order?

A:Regaring the sample order only can be arranged by fast express, such as DHL UPS TNT and so on, the charges we can check for u! For the regular order, normally we choose BY AIR or BY SEA, EXW, FOB all are acceptable.

Q: How faster u can ship out the order?

A: For sample order normally within 3 days, regual order need to negotiate before every delivery issue settle down.

Q: Which way are acceptable for the payment?

A: TT/ Paypal / Western Union

Q: Can you provide us the best price?

A: Yes, each Item have differential pricing according to quantity.

Q:What’s your Quality warranty?

A:Regarding the the metal parts all for 2 years, For silicone is 0.5-1 year.

Q: Can we visit your factory?

A: Yes, You are welcome to have a visit, u need to make an appointment with us before your coming.
