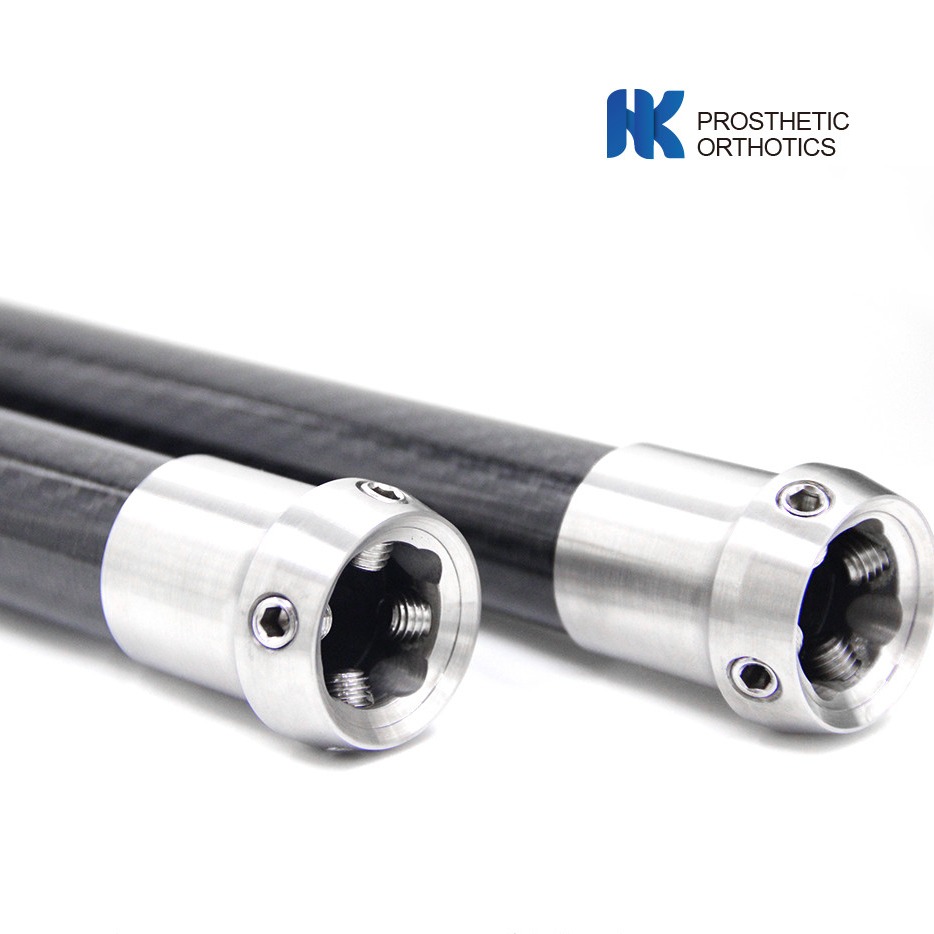

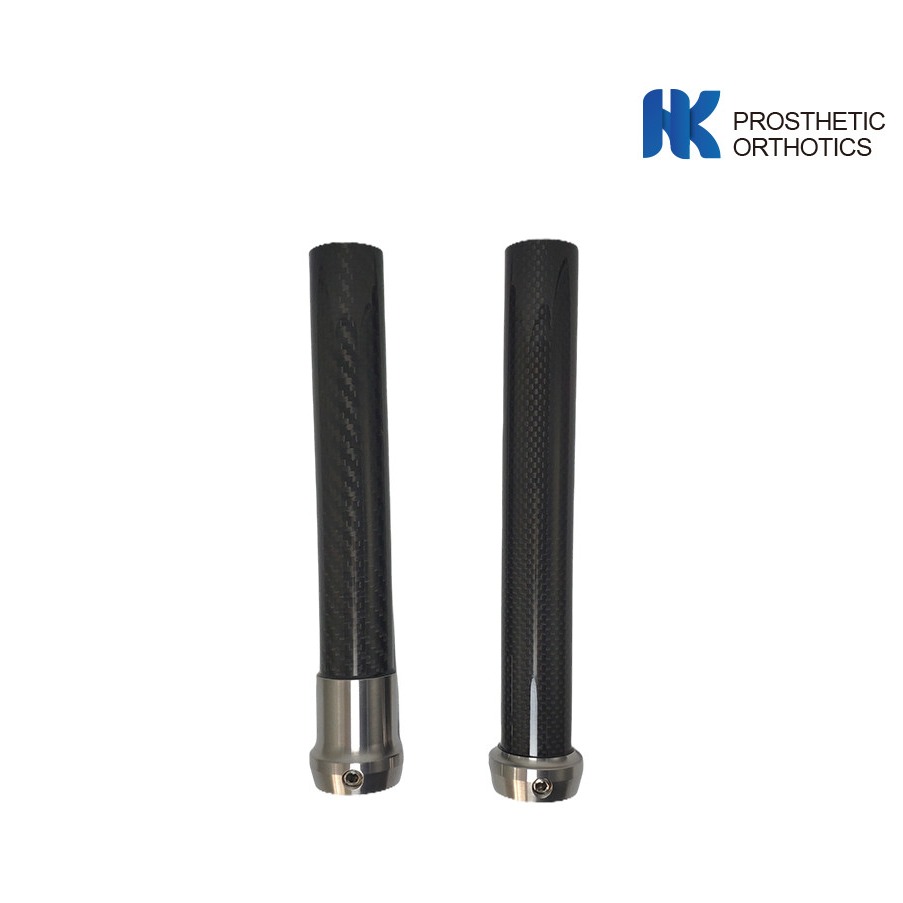

220mm Prosthetic Carbon Fiber Tube Adapter

Basic Information
Place of Origin: CHINA
Certification: CE And ISO13485
Model Number: CHL-220SC CHL-220SCN / CHL-220TC / CHL-220ALC
Minimum Order Quantity: 5 Pcs
Price: USD 18~15 Per Pcs
Packaging Details: Shaped EPE With Cartons
Delivery Time: Within 7 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 1000000 Pcs Per Year
Material: Stainless Steel 17-4 / Titanium GR5 / Aluminium 7075 Max Load: 100Kg 220LBS (SS&AL) / 125Kg 275LBS (Ti)
Proximal Connection: Pyramid Adaptor Sample: Available
OEM: Available Warranty: Two Years
Logo Print: Available Part Weight: 130g~232g
High Light:

Pylon Tube Adapter


Prosthetic Tube Adapter


220mm carbon fiber pipe

Lower Limb Prosthetic Components-Carbon Fiber Pylon Adaptor Length for 220mm

The tube adaptor for the length 220mm. For higher loads in transtibial prostheses, a tube adapter with Ø 30 mm should be used.

• With Cabon Fiber tube ø 30 mm
• The Length 200mm
• With 4 adjustment set screws M8x12

Product Number Material Standard Part Weight Weight Limit
CHL—220SC S.Steel 220mm 167g 220lbs
CHL—220SCN S.Steel 220mm 157g 220lbs
CHL—220TC Titanium 220mm 125g 275lbs
CHL—220ALC Aluminum alloy 220mm 130g 220lbs

220mm Prosthetic Carbon Fiber Tube Adapter 0220mm Prosthetic Carbon Fiber Tube Adapter 1

220mm Prosthetic Carbon Fiber Tube Adapter 2

220mm Prosthetic Carbon Fiber Tube Adapter 3
220mm Prosthetic Carbon Fiber Tube Adapter 4220mm Prosthetic Carbon Fiber Tube Adapter 5220mm Prosthetic Carbon Fiber Tube Adapter 6

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer, providing OEM & ODM service.

Q: How many years since your company start this business?

A: We began manufacturing prosthetics and orthotics parts since the year 2002.

Q: Did your factory Register for export and import?

A: Yes. We applied full range of documents for exportation and importation.

Q: Did your factory and products approved by any testing or certification?

A: yes. We applied CE and ISO13485 medical certification.

Q: May I apply to be one distributor or sole agent in our country to sell your products?

A: yes. This issue can be have a discussion.

Q: May I apply some free samples for testing before purchasing the full range of production?

A: Yes. sample order is acceptable. Also free sample order totally amount can’t be over USD 50.

Q: How to deal for sample order and regular order?

A:Regaring the sample order only can be arranged by fast express, such as DHL UPS TNT and so on, the charges we can check for u! For the regular order, normally we choose BY AIR or BY SEA, EXW, FOB all are acceptable.

Q: How faster u can ship out the order?

A: For sample order normally within 3 days, regual order need to negotiate before every delivery issue settle down.

Q: Which way are acceptable for the payment?

A: TT/ Paypal / Western Union

Q: Can you provide us the best price?

A: Yes, each Item have differential pricing according to quantity.

Q:What’s your Quality warranty?

A:Regarding the the metal parts all for 2 years, For silicone is 0.5-1 year.

Q: Can we visit your factory?

A: Yes, You are welcome to have a visit, u need to make an appointment with us before your coming.
