ISO 13485 Upper Limb Prosthetic , Myoelectric Upper Arm Prosthetics

Basic Information
Place of Origin: CHINA
Brand Name: HK PROSTHETIC ORTHOTICS
Certification: CE,ISO13485
Model Number: HKM-T3 , HKM-T5, CFM-T3, CFM-T5
Minimum Order Quantity: 1 Pcs
Price: USD 1800~1400 Each Case
Packaging Details: Shaped EPE With Cartons
Delivery Time: Within 7 Work Days
Payment Terms: T/T, Western Union,
Supply Ability: 1000000pcs
Material: Aluminium 7075,Carbon Fiber Finger Types: Five Fingers , Three Fingers
Size: S, M, L Lt, Rt Operating Voltage: 7.2V
Opening Width: 79mm Proportional Gripping Force: 0-90N
Proportional Speed: 15-130 Mm/sec Weight: 340g, 350g, 360g
Glove Sizes: Male, Female, S, M, L, Customized Glove Color: 6 Types, 18 Types
Control: Pole, Switch Warranty: One Year
High Light:

ISO 13485 Upper Limb Prosthetic

,

33.8cm Upper Limb Prosthetic

,

Myoelectric Upper Arm Prosthetics

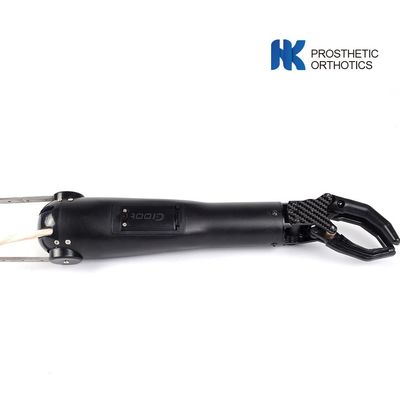

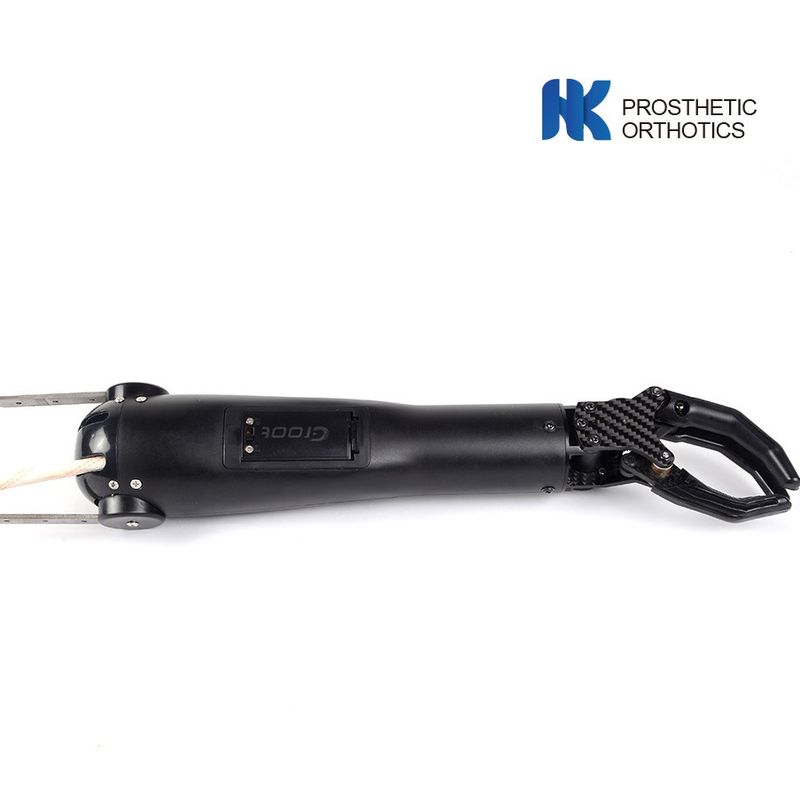

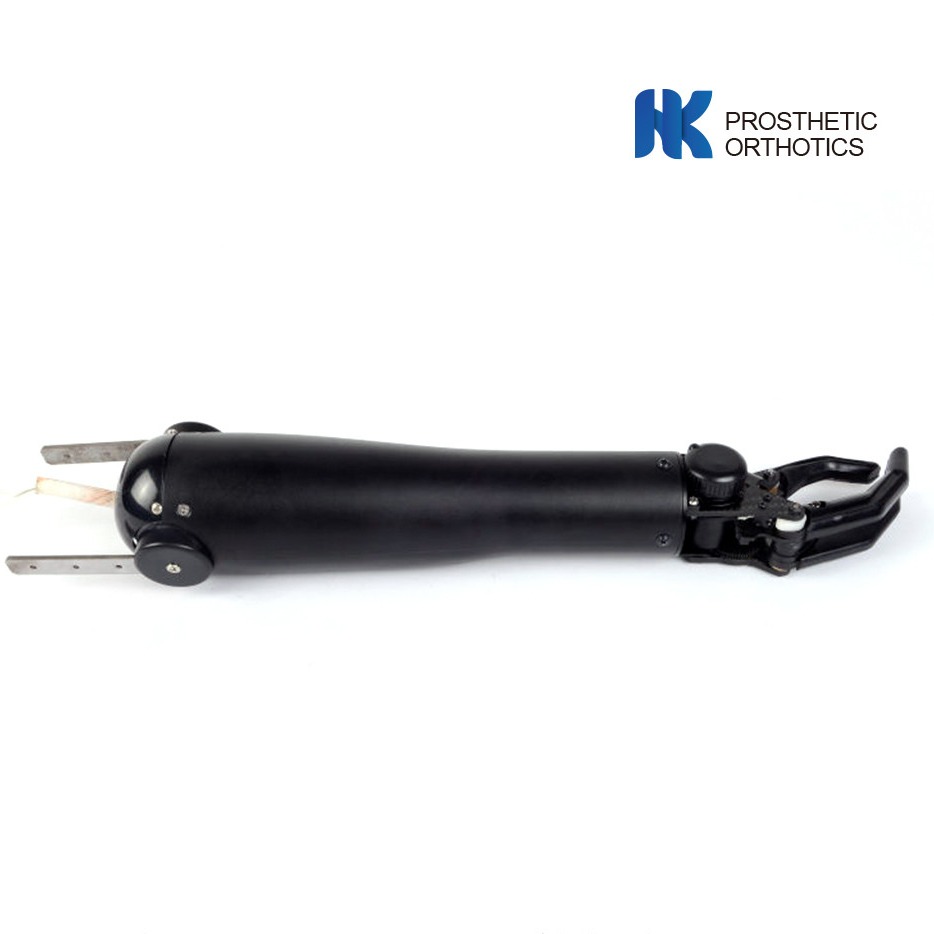

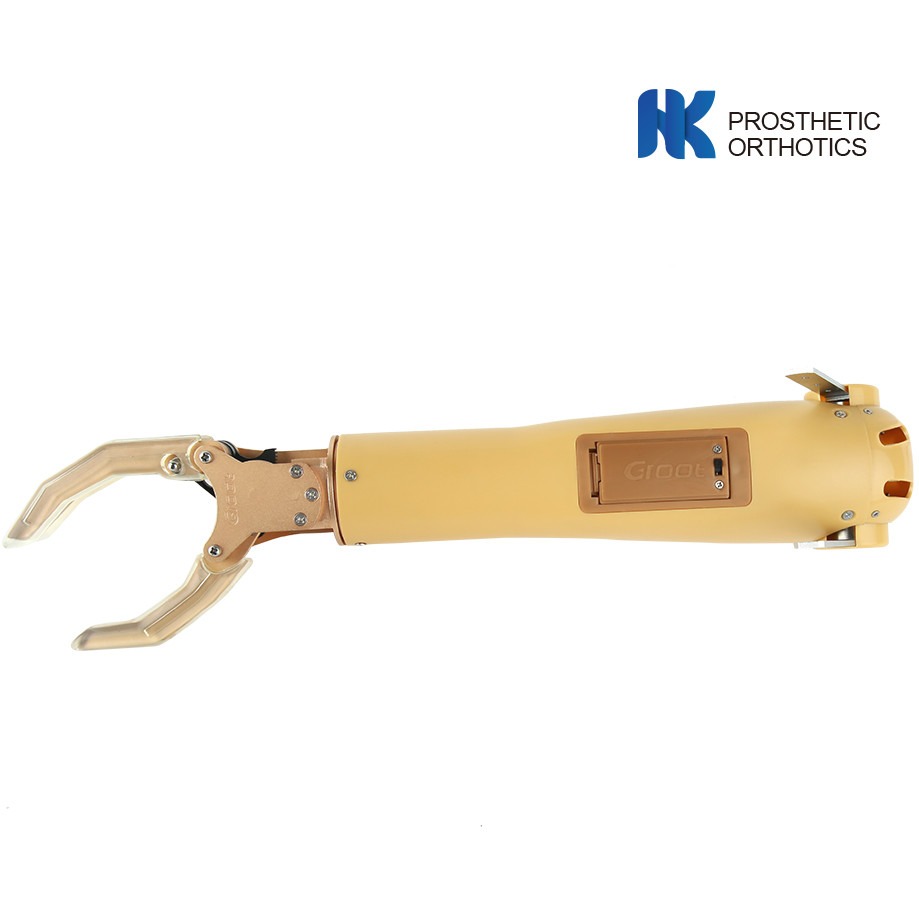

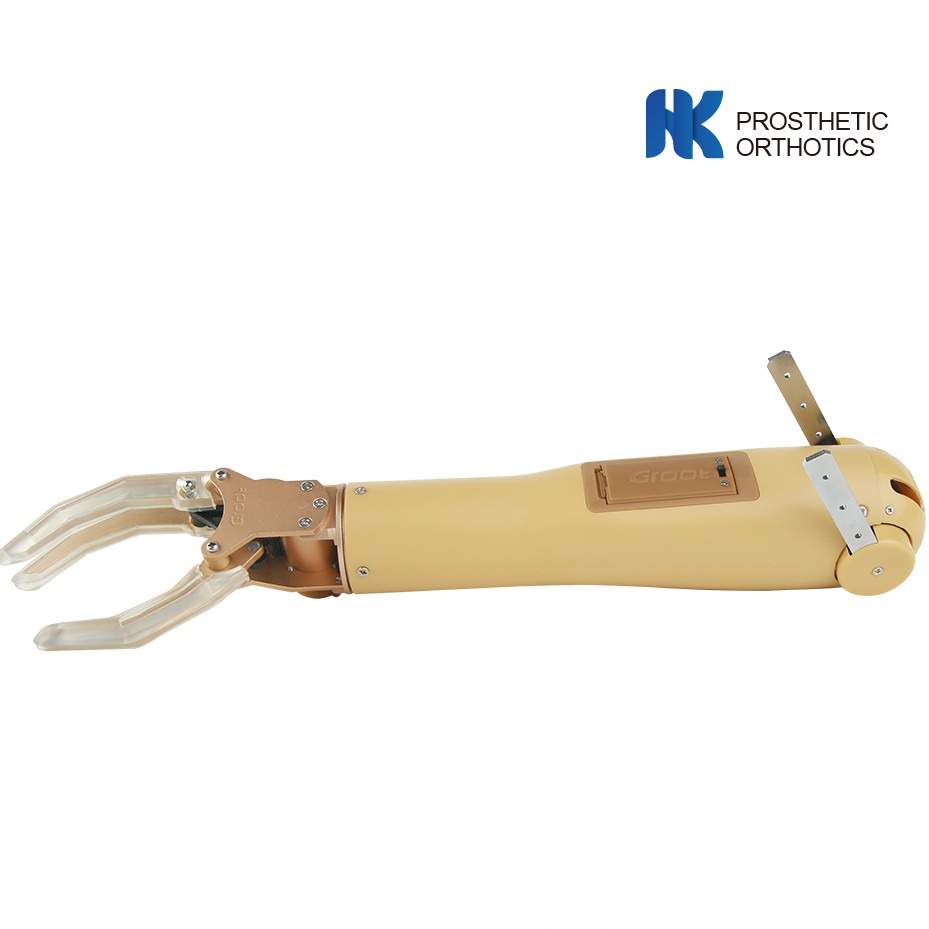

Upper Limb products-Myoelectric Arm Prostheses For Elbow Disarticulation (Two-Motion Freedom)

1.Actions of hand and elbow are controlled by myoelectricity.
2.Wrist joint can be rotated passively
3.Passive changeover switch is added in case of myoelectric switch failures.
4.Suitable for A/E middle, short stump and shoulder disarticulation.
5.Three/ five fingers with short Glove, one charger and two lithium batteries
6.Extra option: two-dimensional finctions / water - resist

Product Number Material Standard size
HKM—T3 ALuminium Three Fingers S: 33.8cm-27.3cm   M:34.4cm-27.9cm     L:35.3cm-28.9cm
HKM—T5 ALuminium Five Fingers S: 33.8cm-27.3cm    M:34.4cm-27.9cm    L:35.3cm-28.9cm
CFM—T3 Carbon Fiber Three Fingers S: 33.8cm-27.3cm    M:34.4cm-27.9cm    L:35.3cm-28.9cm
CFM—T5 Carbon Fiber Three Fingers S: 33.8cm-27.3cm    M:34.4cm-27.9cm    L:35.3cm-28.9cm



ISO 13485 Upper Limb Prosthetic , Myoelectric Upper Arm Prosthetics 0

ISO 13485 Upper Limb Prosthetic , Myoelectric Upper Arm Prosthetics 1



ISO 13485 Upper Limb Prosthetic , Myoelectric Upper Arm Prosthetics 2
ISO 13485 Upper Limb Prosthetic , Myoelectric Upper Arm Prosthetics 3ISO 13485 Upper Limb Prosthetic , Myoelectric Upper Arm Prosthetics 4ISO 13485 Upper Limb Prosthetic , Myoelectric Upper Arm Prosthetics 5

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer, providing OEM & ODM service.

Q: How many years since your company start this business?

A: We began manufacturing prosthetics and orthotics parts since the year 2002.

Q: Did your factory Register for export and import?

A: Yes. We applied full range of documents for exportation and importation.

Q: Did your factory and products approved by any testing or certification?

A: yes. We applied CE and ISO13485 medical certification.

Q: May I apply to be one distributor or sole agent in our country to sell your products?

A: yes. This issue can be have a discussion.

Q: May I apply some free samples for testing before purchasing the full range of production?

A: Yes. sample order is acceptable. Also free sample order totally amount can’t be over USD 50.

Q: How to deal for sample order and regular order?

A:Regaring the sample order only can be arranged by fast express, such as DHL UPS TNT and so on, the charges we can check for u! For the regular order, normally we choose BY AIR or BY SEA, EXW, FOB all are acceptable.

Q: How faster u can ship out the order?

A: For sample order normally within 3 days, regual order need to negotiate before every delivery issue settle down.

Q: Which way are acceptable for the payment?

A: TT/ Paypal / Western Union

Q: Can you provide us the best price?

A: Yes, each Item have differential pricing according to quantity.

Q:What’s your Quality warranty?

A:Regarding the the metal parts all for 2 years, For silicone is 0.5-1 year.

Q: Can we visit your factory?

A: Yes, You are welcome to have a visit, u need to make an appointment with us before your coming.
