Polycentric Prosthetic Knee Joint Pneumatic Swing Control Pyramidal Connection 220Lbs

Basic Information
Place of Origin: CHINA
Brand Name: HK PROSTHETIC&ORTHOTIC
Certification: CE And ISO13485
Model Number: K13AL-P
Minimum Order Quantity: 10Pcs
Price: USD 430~ 300 Per Pcs
Packaging Details: Shaped EPE With Cartons
Delivery Time: Within 7 Work Days
Payment Terms: T/T, Western Union,
Supply Ability: 1000000 Pcs Per Year
Material: Aluminum Connections: AK
Weight: 786g Weight Limit: 220LBS
Logo Print: Available OEM: Available
Warranty: Two Years Sample: Available
High Light:

Pneumatic Swing Control Mechanical Knee Joint

,

Polycentric Pneumatic Knee Joint

,

Pneumatic Prosthetic Knee Joint

Prosthetic Knee Joint- Polycentric Four Bar Knee Joint With Pneumatic Swing Phase Control For AK And KD



Polycentric Four Bar Pneumatic Knee Joint unit,K13AL, is the most stable with a large stance control angle(up to 32°) in the current prosthetic and orthotic market.K13AL also has various alignment adjusting abilities, referring to the following instructions, and its weight is less than 1 Kg. Furthermore, the independent adjusting flexion/extension ability makes gait patents close to normal ones.


Single-chamber pneumatics control the swing phase,In swing phase, the smooth yet powerful single-chamber pneumatics- one chamber each for flexion and extension damping do not run out of air, even at various walking speeds. Harmonious flexion and extension movements, and therefore an approximation of the physiological gait pattern, are made possible. Here the joint geometry effectively shortens the prosthesis during swing, resulting in more ground clearance. Four-axis polycentric structure ensures stance phase stability In extension, the instantaneous centre of rotation is located above the joint and behind the load line, resulting in high stability in stance phase. The integrated extension assist spring ensures that the lower leg of the prosthesis is always extended at heel strike and weight can be safely supported on the prosthesis side. This is especially advantageous when the user takes small compensating steps, turns in a circle or walks in confined areas.
Easy to fit


Flexion and extension dampening can be separately and individually customised to the needs of the user .A quick start guide included with the delivery facilitates the alignment process and helps establish the prosthesis settings. This effectively reduces the working time of the prosthetist and leads to rapid fitting success.


Additional product characteristics
• Main material: aluminium
• Low weight: approx. 750 g
• Connectors: proximal - pyramid adapter,



distal - tube clamp Ø 30 mm
• Plastic cover protects the pneumatics against dirt
• Rounded contours protect the cosmetic cover





Product Number Material Standard Part Weight Weight Limit
K13AL—P Aluminum Pyramidal 786g 100Kg / 220lbs

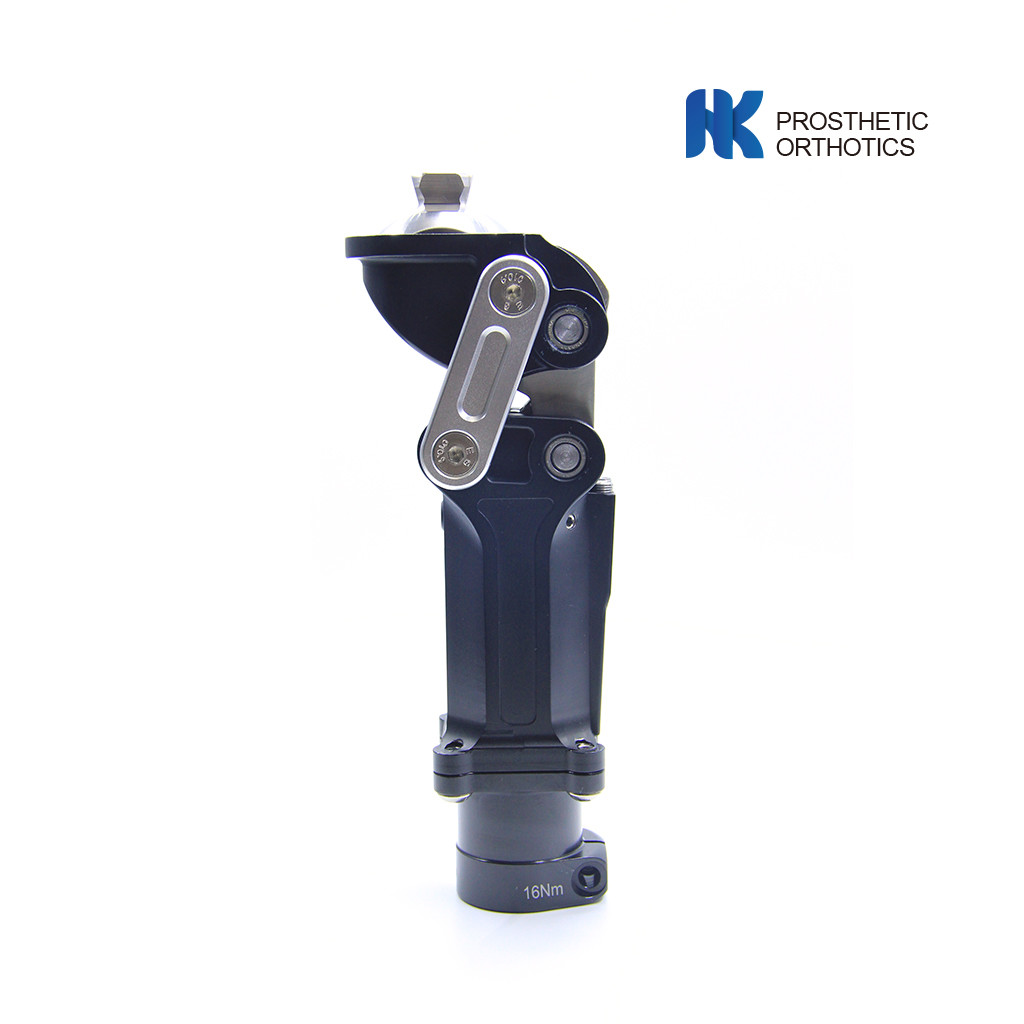

Polycentric Prosthetic Knee Joint Pneumatic Swing Control Pyramidal Connection 220Lbs 0

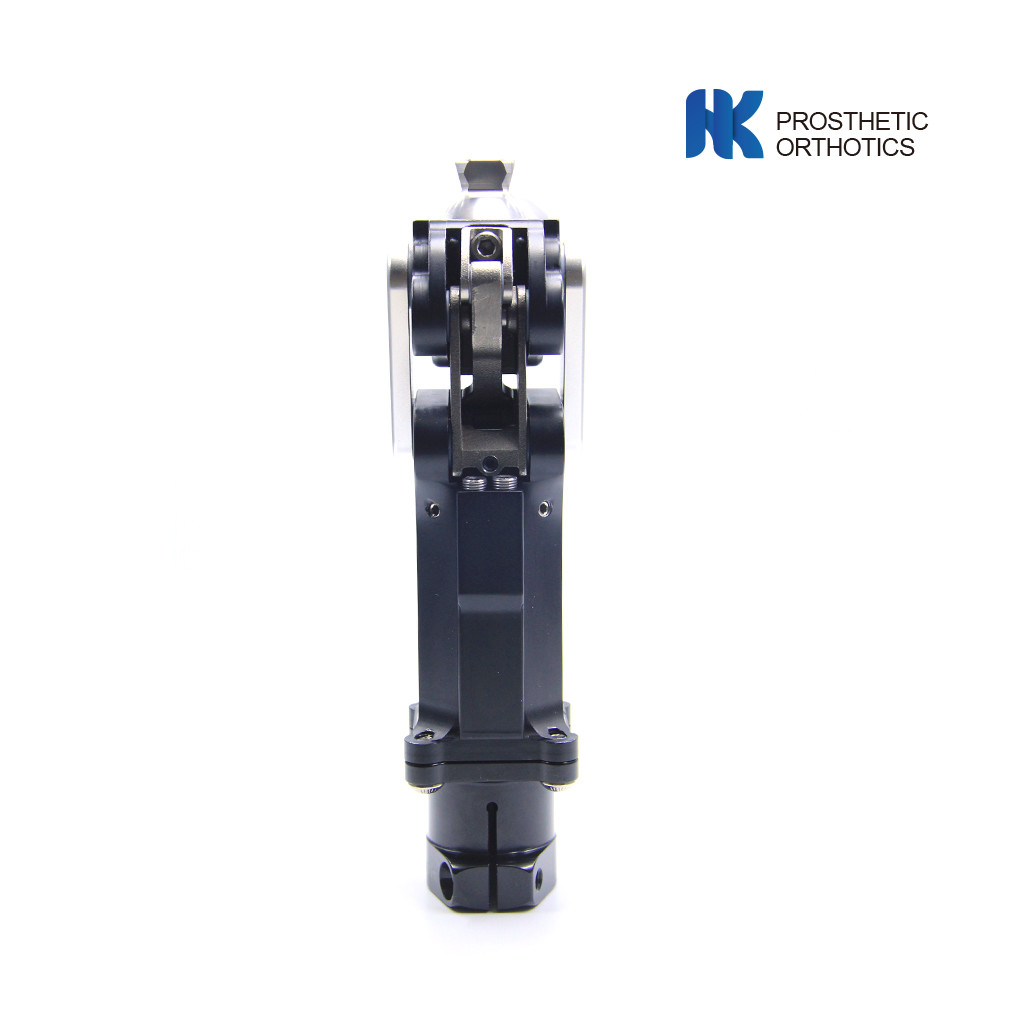

Polycentric Prosthetic Knee Joint Pneumatic Swing Control Pyramidal Connection 220Lbs 1

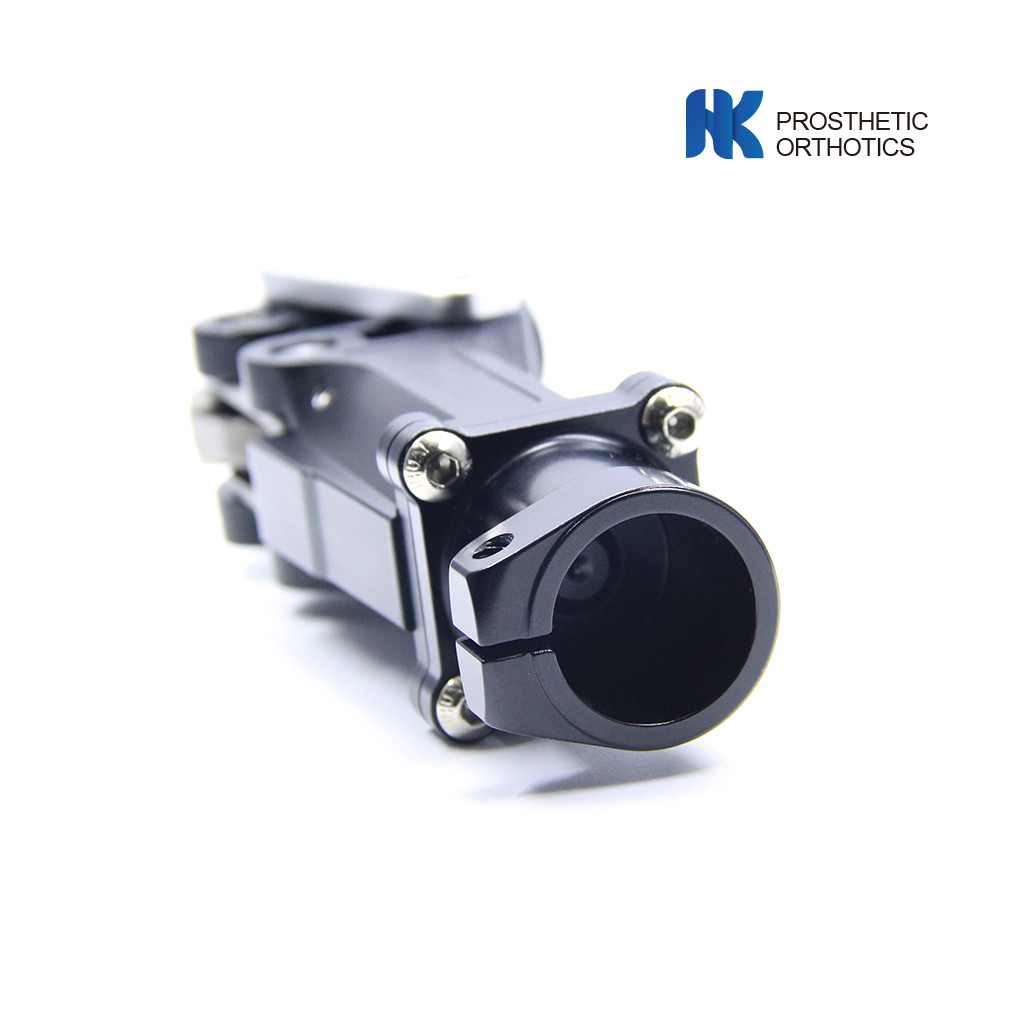

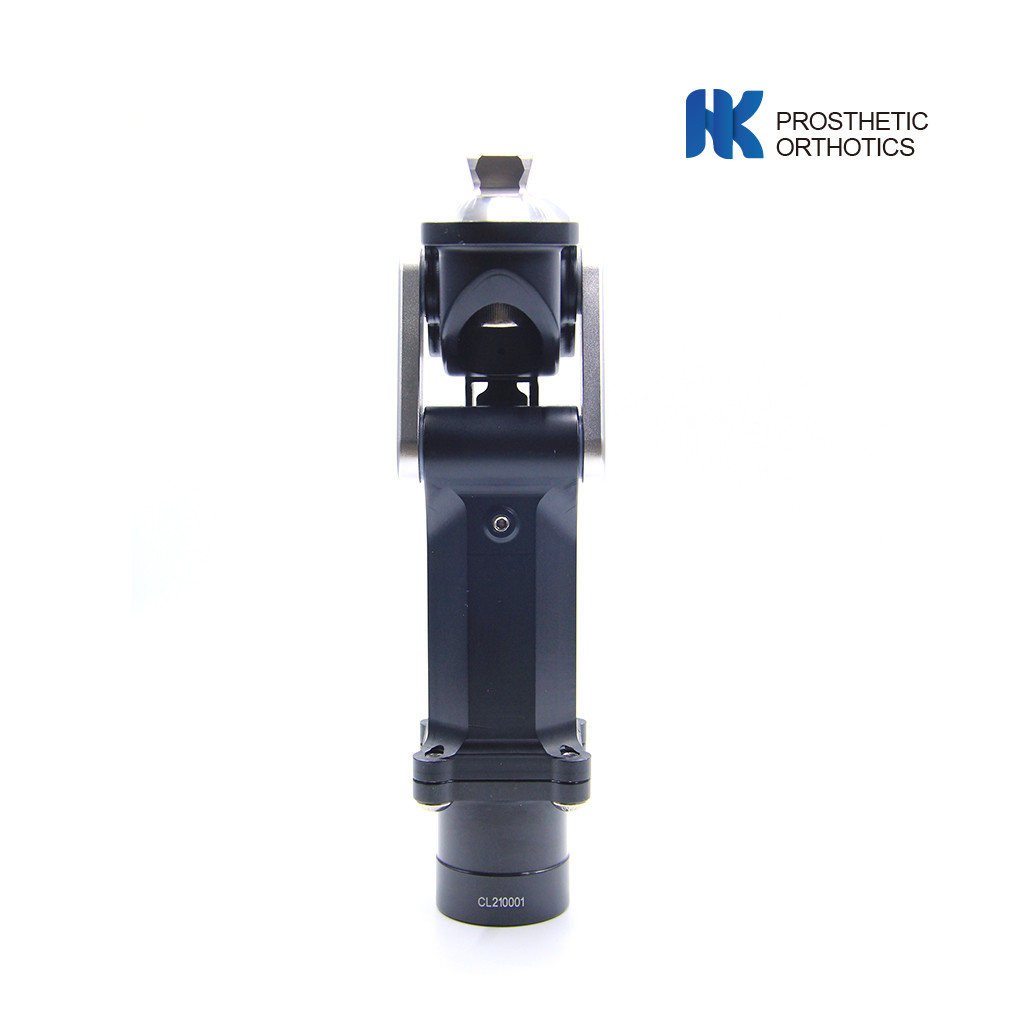

Polycentric Prosthetic Knee Joint Pneumatic Swing Control Pyramidal Connection 220Lbs 2Polycentric Prosthetic Knee Joint Pneumatic Swing Control Pyramidal Connection 220Lbs 3

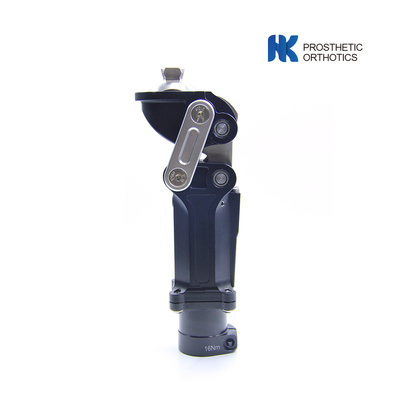

Polycentric Prosthetic Knee Joint Pneumatic Swing Control Pyramidal Connection 220Lbs 4

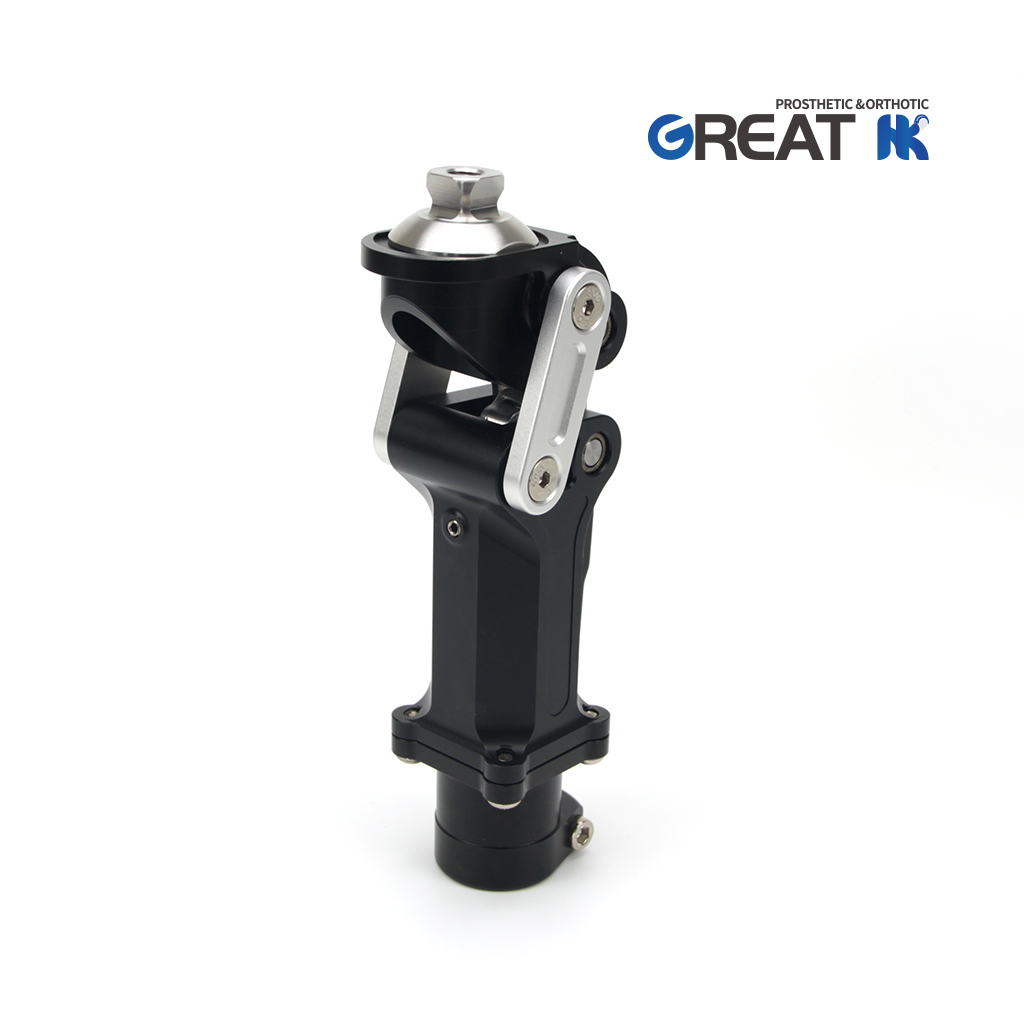

Polycentric Prosthetic Knee Joint Pneumatic Swing Control Pyramidal Connection 220Lbs 5Polycentric Prosthetic Knee Joint Pneumatic Swing Control Pyramidal Connection 220Lbs 6Polycentric Prosthetic Knee Joint Pneumatic Swing Control Pyramidal Connection 220Lbs 7

Q: Are you a manufacturer or a trading company?

A: We are the manufacturer, providing OEM & ODM service.

Q: How many years since your company start this business?

A: We began manufacturing prosthetics and orthotics parts since the year 2002.

Q: Did your factory Register for export and import?

A: Yes. We applied full range of documents for exportation and importation.

Q: Did your factory and products approved by any testing or certification?

A: yes. We applied CE and ISO13485 medical certification.

Q: May I apply to be one distributor or sole agent in our country to sell your products?

A: yes. This issue can be have a discussion.

Q: May I apply some free samples for testing before purchasing the full range of production?

A: Yes. sample order is acceptable. Also free sample order totally amount can’t be over USD 50.

Q: How to deal for sample order and regular order?

A:Regaring the sample order only can be arranged by fast express, such as DHL UPS TNT and so on, the charges we can check for u! For the regular order, normally we choose BY AIR or BY SEA, EXW, FOB all are acceptable.

Q: How faster u can ship out the order?

A: For sample order normally within 3 days, regual order need to negotiate before every delivery issue settle down.

Q: Which way are acceptable for the payment?

A: TT/ Paypal / Western Union

Q: Can you provide us the best price?

A: Yes, each Item have differential pricing according to quantity.

Q:What’s your Quality warranty?

A:Regarding the the metal parts all for 2 years, For silicone is 0.5-1 year.

Q: Can we visit your factory?

A: Yes, You are welcome to have a visit, u need to make an appointment with us before your coming.





Polycentric Prosthetic Knee Joint Pneumatic Swing Control Pyramidal Connection 220Lbs 8
