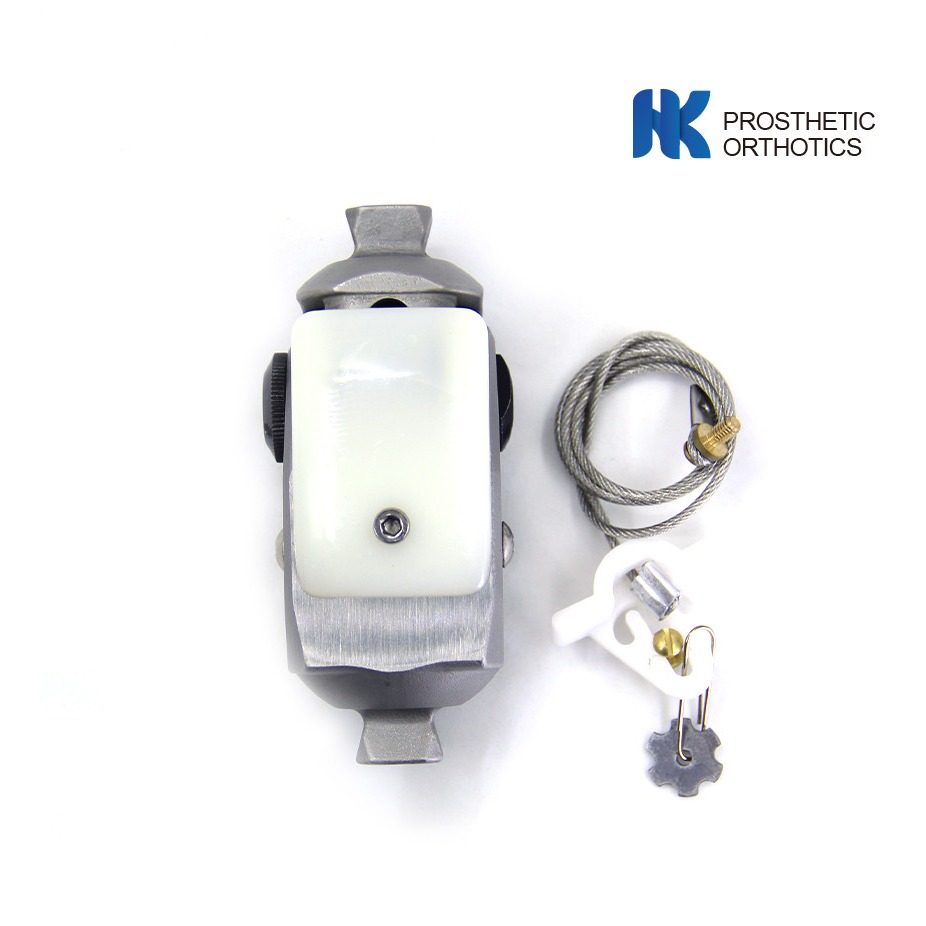

CE 275lbs Prosthetic Manual Lock Knee Joint

Basic Information
Place of Origin: CHINA
Brand Name: HK PROSTHETIC&ORTHOTIC
Certification: CE And ISO13485
Model Number: CHG-03S
Minimum Order Quantity: 5 Pcs
Price: USD 50~30 Per Pcs
Packaging Details: Shaped EPE With Cartons
Delivery Time: Within 7 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Pcs Per Year
Material: Stainless Steel Connections: AK
Weight: 580g Weight Limit: 100Kg / 220Lbs
Activity Level: K1 Maximum Knee Flexion Angle: 120°
Knee Center To Proximal Connection: 37mm Proximal Connection: Pyramidal Adaptor
Distal Connection: Pyramidal Adaptor Functional: Manual Lock
High Light:

220lbs Prosthetic Manual Lock Knee Joint

,

37mm Prosthetic Manual Lock Knee Joint

,

ISO 13485 Pyramidal Manual Lock Knee Joint

Prosthetic Knee Joint-Single Axis Prosthetic Knee Joint With Manual Lock Stainless Steel Max Body Weight 100Kg


Recommendation:
• For trans-femoral amputees
• With lower functional levels
• High stance phase stability
• No swing phase control
• Not suitable for amputees with moderate and
•Higher functional level



Description:
The knee axis connects the upper and lower joint section with bushings and ball bearings.The adjustable lock
secures the knee in extension. Deblock of flexion via lock cable. Self-acting lock at full extension with the help
of the extension assist.



Technical Data:
• Knee flexion range: approx. 120°
• Height (knee axis center - upper edge): 37 mm



Product Number Material Standard Part Weight Weight Limit
CHG—03S Casting S.Steel 583g 220lbs









CE 275lbs Prosthetic Manual Lock Knee Joint 0CE 275lbs Prosthetic Manual Lock Knee Joint 1

CE 275lbs Prosthetic Manual Lock Knee Joint 2
CE 275lbs Prosthetic Manual Lock Knee Joint 3CE 275lbs Prosthetic Manual Lock Knee Joint 4CE 275lbs Prosthetic Manual Lock Knee Joint 5
